M24 Chaffee - G200 Series of Vehicles

75mm SHELL / CASE PRODUCTION

M24 Drive Hub and Sprockets


3 separate pieces

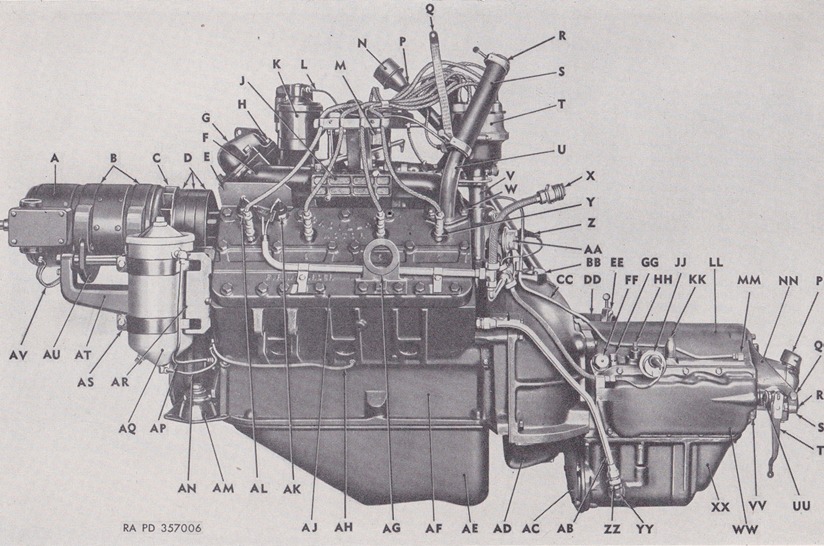

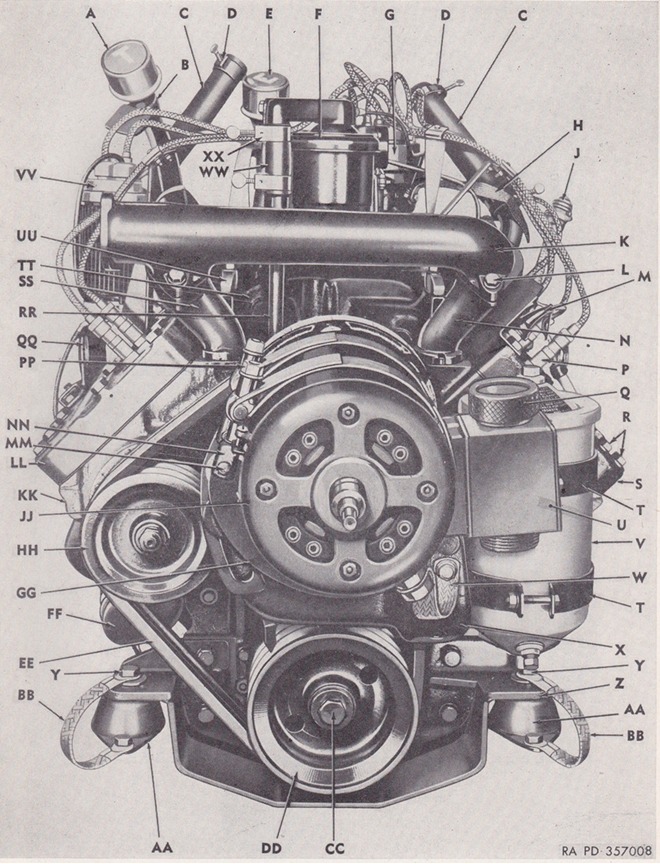

M24 / G200 Series Power pack assy.

Although very similar to the Stuart G103 series engine and the engine in the LVT they are very different and not interchangeable. The LVT engine does have the dive shaft through the intake manifold but is still set up differently.

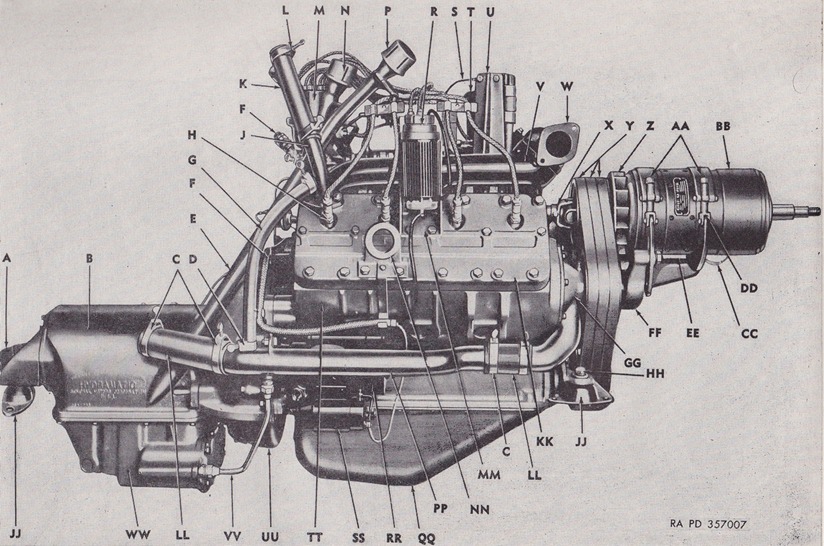

Engine below is show with shielded ignition system

Description                 Size                       Ord. Drawing No.          Ord. Stock No.

Road Wheel              26" x 4 1/2"                  C121441                      G163-5621441     (M18 Hellcat & M24 Series)
Idler Wheel                  11" x 3"                     C136637                      G200-5636637     (M24 Series  & M41 Series)
Road Wheel            25 1/2" x 4 1/2"              D76489                       G251-6576489     (M41 Walker Bulldog Series)

Misc M24 Series Facts & Figures




  • 138 M24 Chaffee Light Tanks were sent to the Korean War by the US









Track Model No.                          Description                             Track Ord. No.         Sprocket Required to run  listed track

T72E1 Track     Steel, Center guide, parallel grouser, Single pin      D7038144               Sprocket D76210
T85E1 Track     Rubber, center guide, integral grouser                    D7074450               Sprocket D7049476


M18 Drive Hub Sprocket Assembly


​2 separate pieces

More Myths and track facts...M18 & M24

M24 T85E1 track can be used on the M18 Hellcat. But the entire sprocket and hub must be changed.

Detail - The M24 series tanks have a "drive hub" and sprockets. Sprockets are removable for either simple replacement or steel track or rubber track conversion. They BOLT to this "drive hub". Because as mentioned above there are two different sprockets & tracks available for the M24.


M18 Hellcat does not have a drive hub  and bolt on sprockets. It has two separate halves that bolt together to make one complete drive sprocket assembly. The "sprocket" (toothed part) is welded to the hub as an assembly. This is not just an M24 sprocket welded to a hub it is an entirely different component.


M18 Steel track is NOT the same as M24 steel track. M24 steel track will not run on any M18 sprocket assembly
